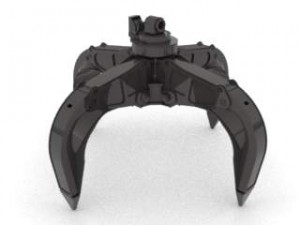

Caterpillar Orange Peel Grapples

Robust design, lifting capacity and efficiency put Caterpillar Orange Peel Grapples on top of the pile in scrap handling and recycling. The grapple’s four hydraulic tines penetrate deep into scrap piles and grab tight to move the maximum possible material in every pass. This grapple provides superior productivity and efficiency for material handling operators.

• Continuous, bi-directional hydraulic rotation positions the grapple quickly and precisely. The four tines penetrate deeply and grab securely, for maximum loads with every pass.
• Cat Orange Peel Grapples feature protected hydraulics. The body and tines of the grapple are constructed from high-strength, wear-resistant steel. All cylinders and hoses are housed within the shear body, isolating them from common sources of damage. Mechanical stop and hydraulic cushioning protect the cylinders and hydraulic system from dangerous pressure spikes.
• Access panels allow easy access to all service points. Tine tips are easy to replace, protecting tines from wear.

Caterpillar Orange Peel Grapples GSH15B-H-5-400-C

• capacity 0.4m3
• weight 1530kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-400-S

• capacity 0.4m3
• weight 1445kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-500-C

• capacity 0.5m3
• weight 1540kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-500-S

• capacity 0.5m3
• weight 1445kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-4-600-N

• capacity 0.6m3
• weight 1215kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-600-C

• capacity 0.6m3
• weight 1575kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-600-O

• capacity 0.6m3
• weight 1395kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-600-S

• capacity 0.6m3
• weight 1475kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH20B-H-4-600-N

• capacity 0.6m3
• weight 1575kg
• max lift capacity 8000kg

Caterpillar Orange Peel Grapples GSH20B-H-5-600-N

• capacity 0.6m3
• weight 1870kg
• max lift capacity 8000kg

Caterpillar Orange Peel Grapples GSH20B-H-5-600-S

• capacity 0.6m3
• weight 1905kg
• max lift capacity 8000kg

Caterpillar Orange Peel Grapples GSH15B-H-4-800-N

• capacity 0.8m3
• weight 1260kg
• max lift capacity 4000kg

Caterpillar Orange Peel Grapples GSH15B-H-5-800-N

• capacity 0.8m3
• weight 1515kg
• max lift capacity 8000kg

Caterpillar Orange Peel Grapples GSH20B-H-4-800-N

• capacity 0.8m3
• weight 1615kg
• max lift capacity 8000kg

Caterpillar Orange Peel Grapples GSH22B

• capacity 1.1m3
• weight 2390kg
• max lift capacity 12000kg

Caterpillar Orange Peel Grapples GSH22B

• capacity 1.5m3
• weight 2410kg
• max lift capacity 12000kg

Caterpillar Orange Peel Grapples GSH22B-H-4-1000-N

• capacity 1000m3
• weight 2410kg
• max lift weight capacity 12000kg

Caterpillar Orange Peel Grapples GSH22B-H-4-1500-N

• capacity 1500m3
• weight 2410kg
• max lift capacity 12000kg
