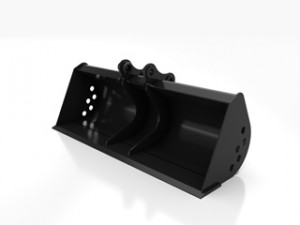

These buckets are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
- Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.
- Formed back wrapper design enhances bucket loadability and production.
- Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
- Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
» 700 mm (27.6 in)
Width: 800 mm
Heaped Capacity: 0.027 m3
FOR USE WITH A 300.9 MINI EXCAVATOR
» 800 mm (32 in)
Width: 800 mm
Struck Capacity: 0.031 m3
Heaped Capacity: 0.044 m3
FOR USE WITH 301.4D AND 301.7D MINI EXCAVATORS
» 800 mm (32 in)
Width: 800 mm
Struck Capacity: 0.067 m3
Heaped Capacity: 0.08 m3
FOR USE WITH 304.2D, 302.7D CR AND 302.2D MINI EXCAVATORS
» 1000 mm (40 in)
Width: 1000 mm
Struck Capacity: 0.038 m3
Heaped Capacity: 0.056 m3
FOR USE WITH 301.4C AND 301.7D MINI EXCAVATORS
» 1000 mm (40 in)
Width: 1000 mm
Struck Capacity: 0.078 m3
Heaped Capacity: 0.111 m3
FOR USE WITH 303.5E CR AND 304E CR MINI EXCAVATORS
» 1000 mm (40 in)
Width: 1000 mm
Struck Capacity: 0.087 m3
Heaped Capacity: 0.139 m3
FOR USE WITH 305E CR AND 305.5E CR MINI EXCAVATORS
» 1000 mm (40 in)
Width: 1000 mm
Struck Capacity: 0.085 m3
Heaped Capacity: 0.102 m3
FOR USE WITH 302.4D, 302.7D CR AND 302.2D CR MINI EXCAVATORS
» 1200 mm (47 in)
Width: 1200 mm
Struck Capacity: 0.095 m3
Heaped Capacity: 0.116 m3
FOR USE WITH 302.4D, 302.7D CR AND 302.2D CR MINI EXCAVATORS
» 1200 mm (47 in)
Width: 1200 mm
Struck Capacity: 0.094 m3
Heaped Capacity: 0.135 m3
FOR USE WITH 303.5E CR AND 304E CR MINI EXCAVATORS
» 1229 mm (48 in)
Width: 1229 mm
Struck Capacity: 0.28 m3
Heaped Capacity: 0.33 m3
FOR USE WITH 308E2 CR SB AND 308E CR SB MINI EXCAVATORS
» 1300 mm (51 in)
Width: 1300 mm
Struck Capacity: 0.116 m3
Heaped Capacity: 0.184 m3
FOR USE WITH 305E CR AND 305.5E CR MINI EXCAVATORS
» 1381 mm (54 in)
Width: 1381 mm
Struck Capacity: 0.32 m3
Heaped Capacity: 0.37 m3
FOR USE WITH 308E2 CR SB AND 308E CR SB MINI EXCAVATORS
» 1400 mm (55 in)
Width: 1400 mm
Struck Capacity: 0.11 m3
Heaped Capacity: 0.159 m3
FOR USE WITH 303.5 ECR AND 304E CR MINI EXCAVATORS
» 1534 mm (60 in)
Width: 1534 mm
Struck Capacity: 0.35 m3
Heaped Capacity: 0.42 m3
FOR USE WITH 308E2 CR SB AND 308E CR SB MINI EXCAVATORS
» 1600 mm (63 in)
Width: 1600 mm
Struck Capacity: 0.145 m3
Heaped Capacity: 0.229 m3
FOR USE WITH 305E CR AND 305.5E CR MINI EXCAVATORS
